Fremco Overblow Y Block

ZAR 0.00
Out of stock
SKU
YBLOCK

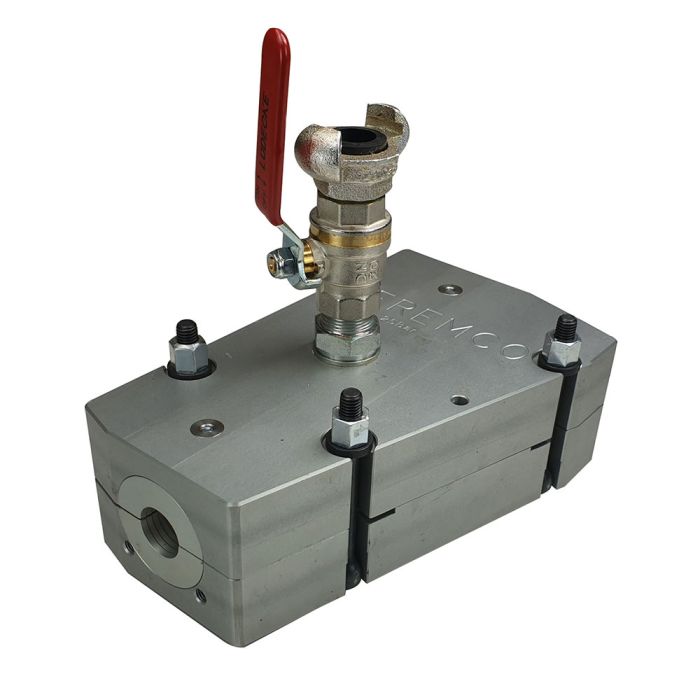

The Fremco Y-block, used for overblow, can assist you in adding one cable to an existing duct where another cable is already inside.

The Fremco Y-block, used for overblow, can assist you in adding one cable to an existing duct where another cable is already inside.


This fibre blowing machine accessory, the Y-block, is a perfect device for contractors to utilise in situations where there is a requirement to overblow (blowing one cable to a duct where another cable is already installed).


The Fremco Y-block is very flexible since it enables a wide range of duct and adaptor collets to be used, making it possible to customise the Y-block to fit the specific overblow.

The new Y-block features a built-in air connection. This direct air connection is especially useful when utilising smaller machines (such as the MicroFlow or MiniFlow) as it can fit smaller cable dimensions.

Where smaller machines were limited in doing overblow due to various cable dimensions, the direct air connection makes it possible for smaller machines to gain the extra pressure that can ensure overblow in a more easy and effective way.

Its surface is treated aluminium and can withstand air pressure up to 25 bar.



With Fremco’s customized duct collet and adaptors, the Y-Block is more flexible as it can be fitted into different sizes of ducts between 14 mm and 65 mm.
This means you can modify both ends of the Y-block to fit each specific overblow. Adaptor and duct collet sets (for inlet and outlet) are not included and must be ordered separately.





Specifications

Pressure resistance: ................. 25 bar
Length: ................................... 250 mm
Width: .....................................155 mm
Height: .................................... 80 mm
Weight: ................................... 5,3 kg (Without adaptor and duct collect)
